Stair Products
HANDRAIL AND STAIR COMPONENTS
When you think of stair parts, consider Anderson Wood, one of America’s largest producers of lineal stair components; handrail, bending rail, wall rail, shoe rail and small mouldings. With dedicated resources and technology that is second to none we manufacture these products in a wide variety of profiles, styles and species to satisfy our customer’s diverse requirements.
STYLES

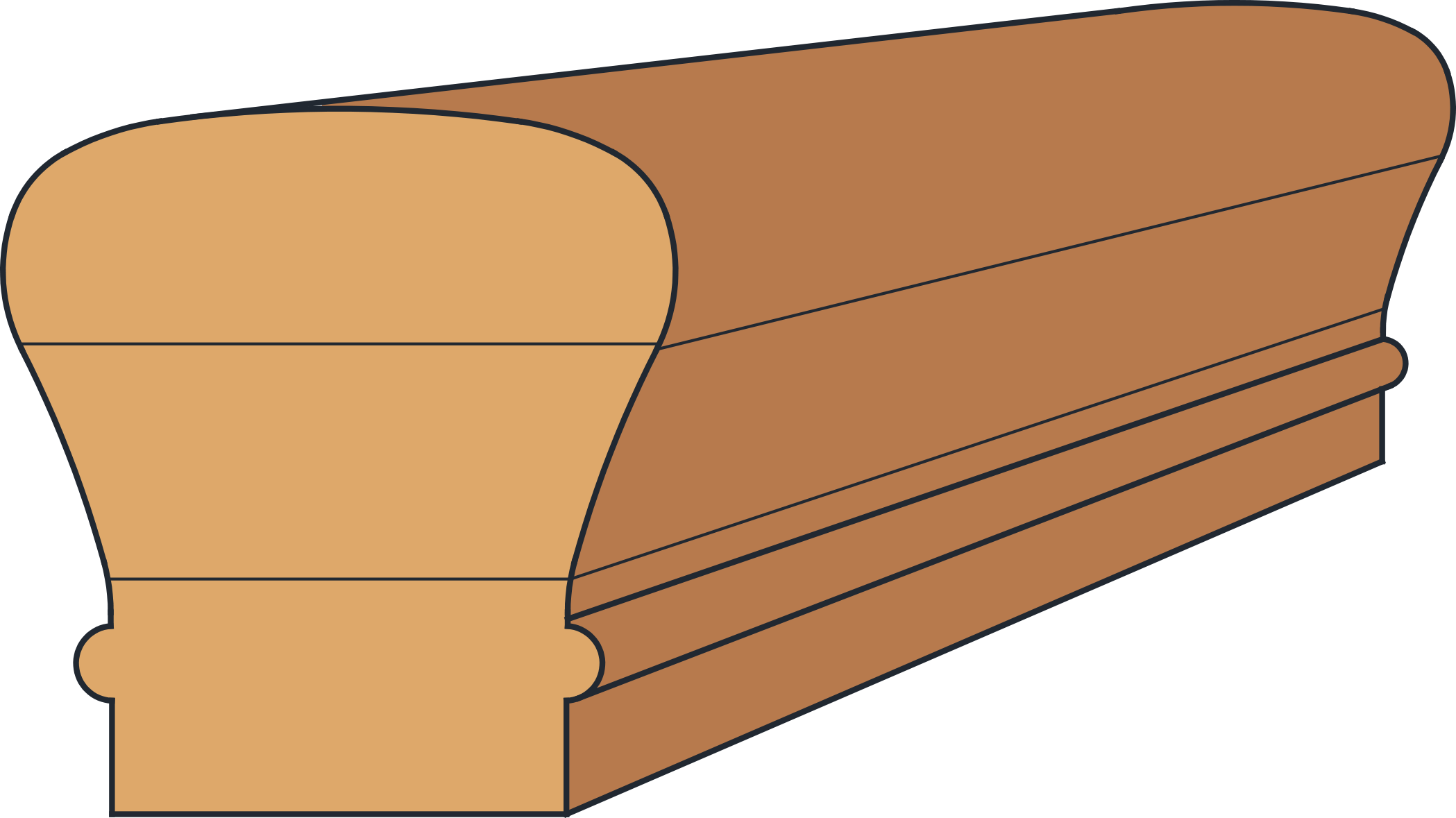

ALL SOLID PLY HANDRAIL
• All handrail plys are solid. None of the plys contain finger joints.
• Available in random lengths 8’ through 16’ in each foot length. 25% to 30% of the total footage shipped in 13’ through 16’ lengths. No more than 10% shipped in 8’ lengths with the balance in 10’, 11’ and 12’ lengths.

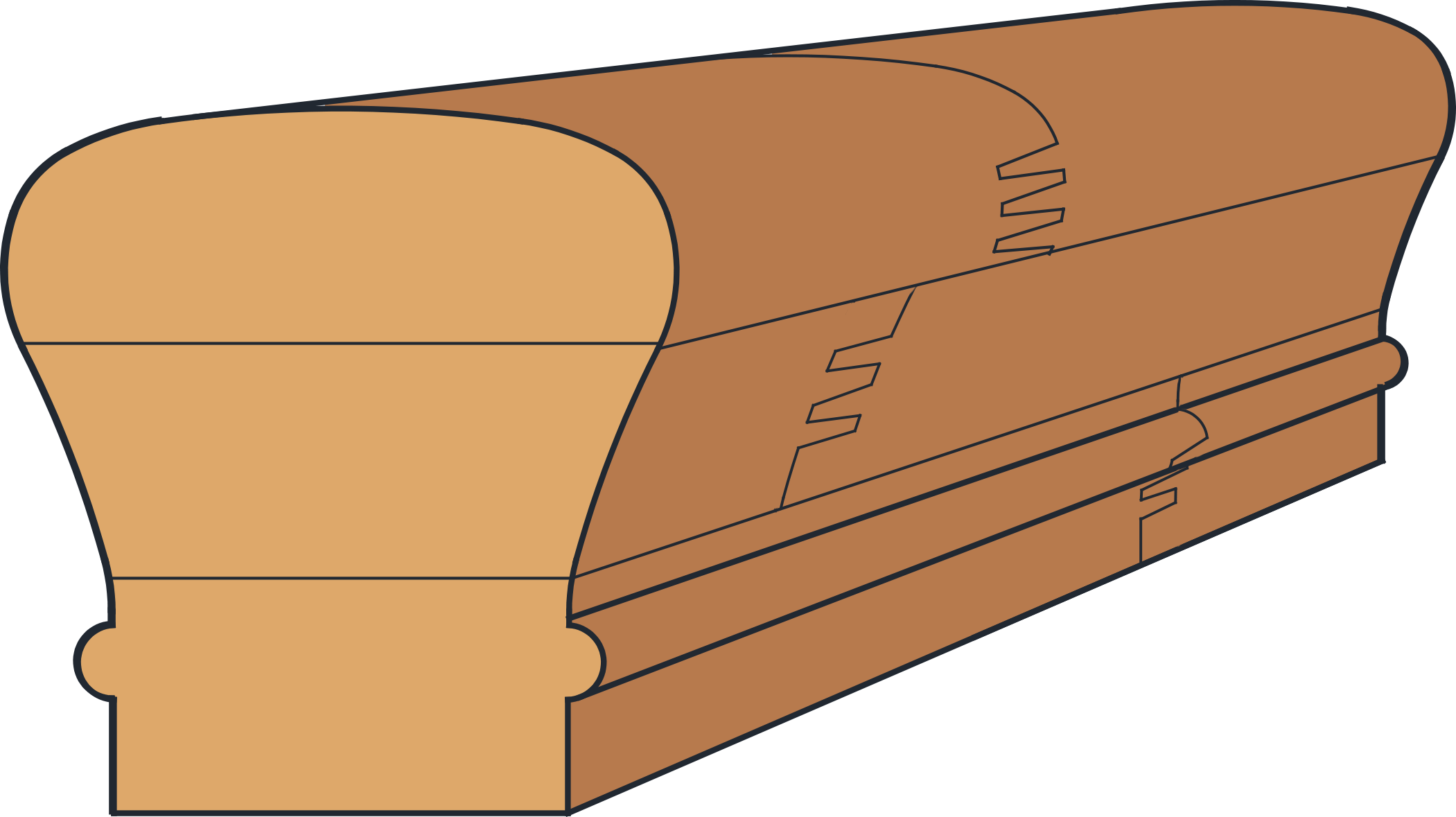

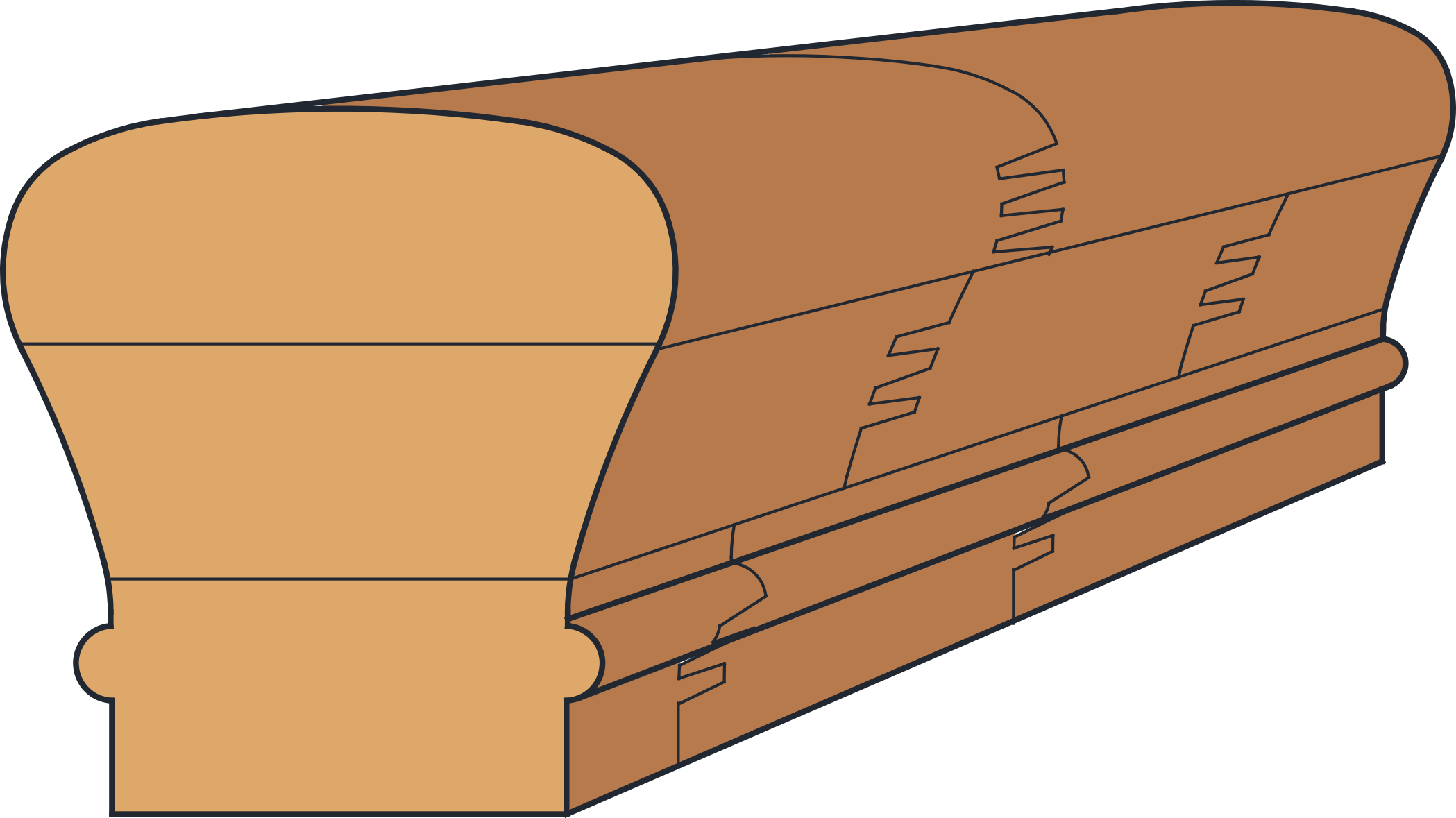

ALL TWO-PIECE PLY HANDRAIL
• All plys contain one finger joint. Components are well matched for color. This style provides additional long length material in the All Solid type handrail.
• All Two-Piece Ply Handrail is available in 14’ and 16’ specified lengths.

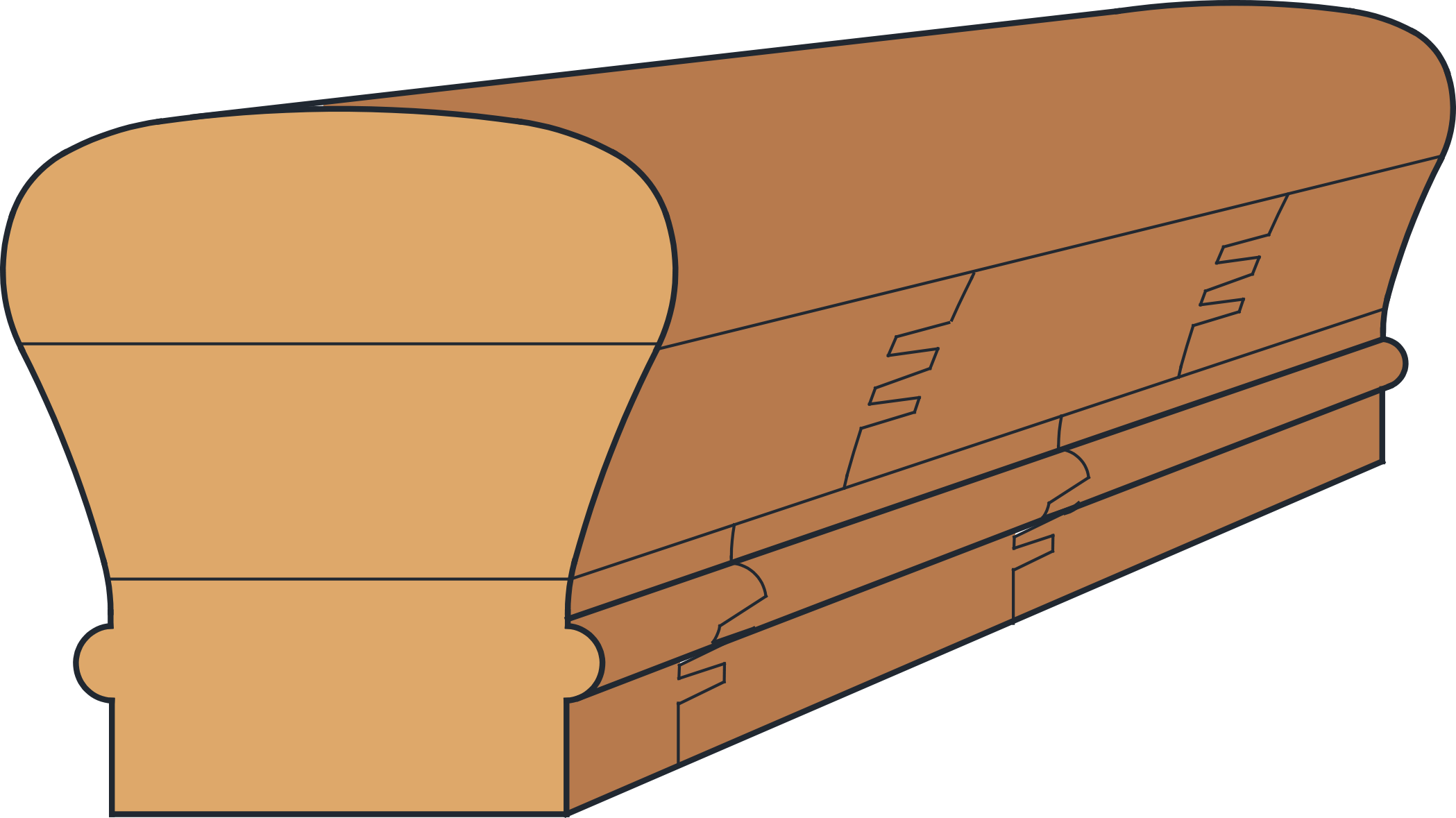

SOLID TOP PLY HANDRAIL
• Top ply is solid. Additional plys contain multiple finger joints.
• Available in random lengths 8’ through 16’ in even foot lengths. 25% to 30% of the total footage shipped as 14’ and 16’. No more than 10% shipped as 8’ with the balance in 10’ and 12’ lengths.
ALL FINGER JOINT PLY HANDRAIL
•All plys contain finger joints. Top plys are manufactured from color matched components that contain 4 finger joints or less. Additional plys contain multiple finger joints.
•Available in specified lengths 8’ through 16’ in even foot lengths.
SPECIES
Red Oak
White Oak
Poplar
Soft Maple
Hard Maple

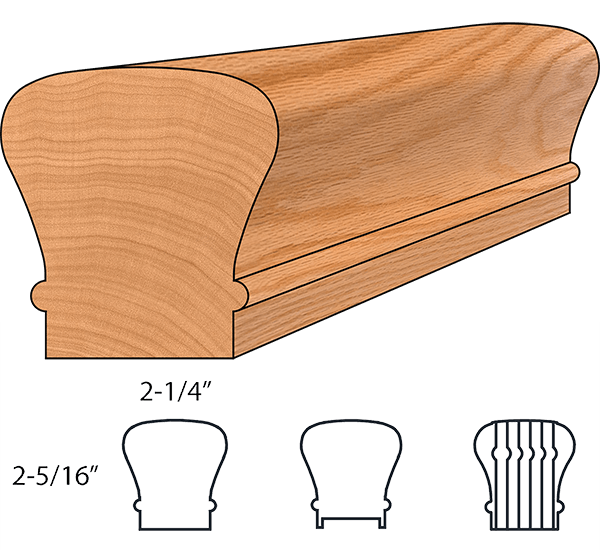

HANDRAILS
The profiles shown below represent some of our most popular offerings. With in-house design and tooling capabilities we have the ability to create any profile that is required. Any of our plowed profiles can be provided with fillet installed.

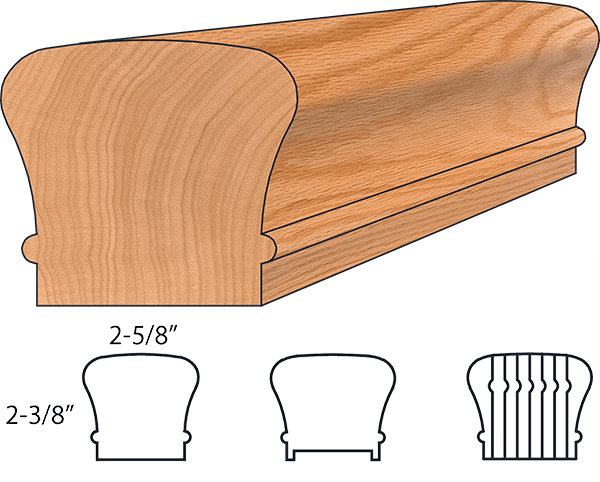

6210

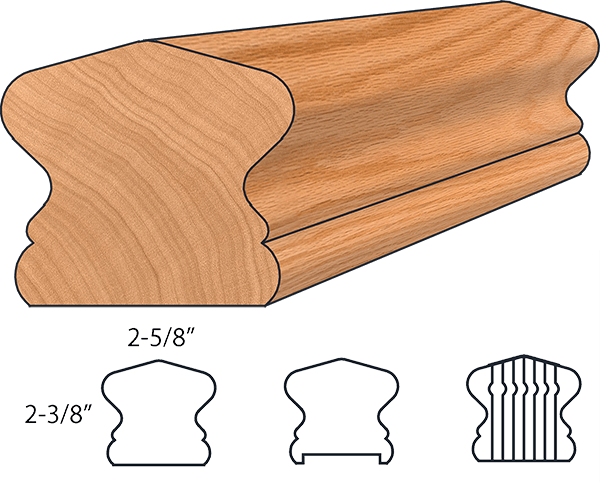

6510

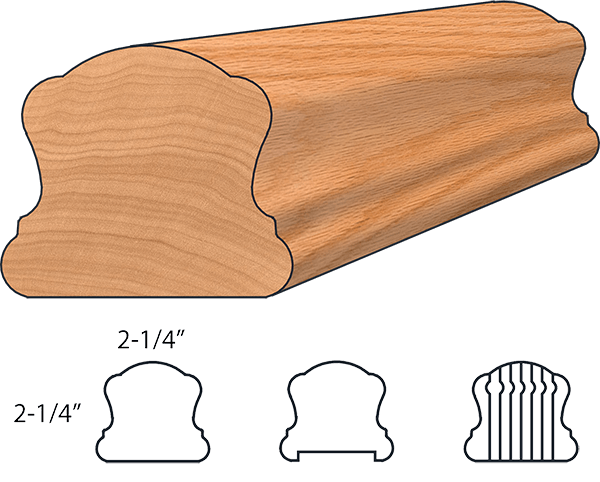

8000

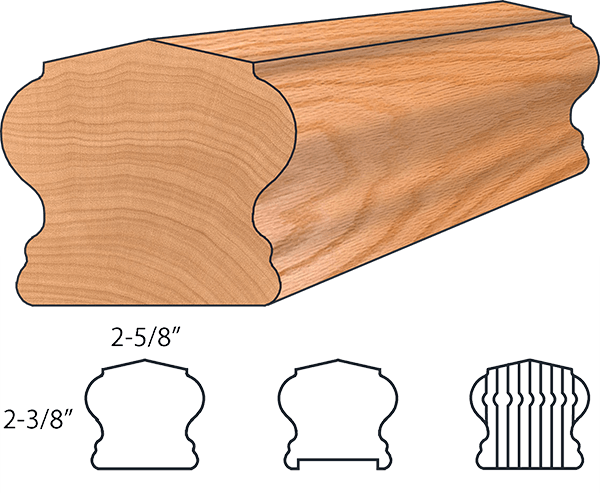

6110

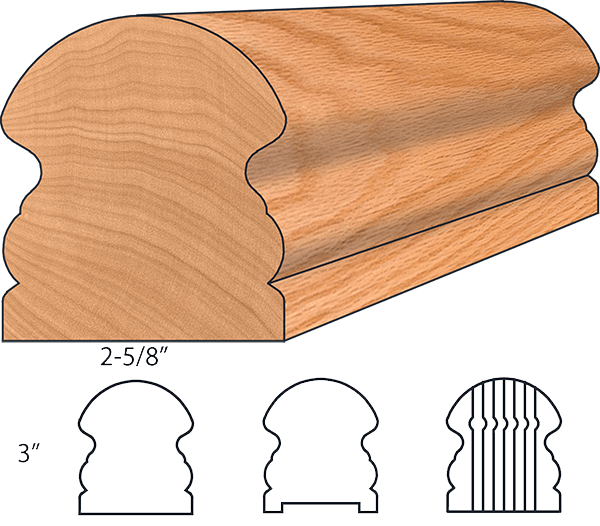

6519

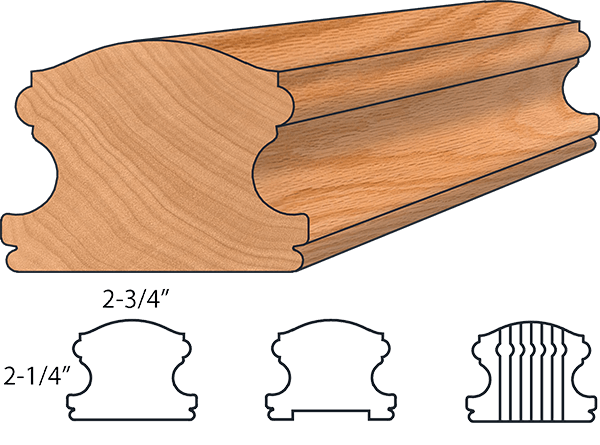

6400
WALL RAILS

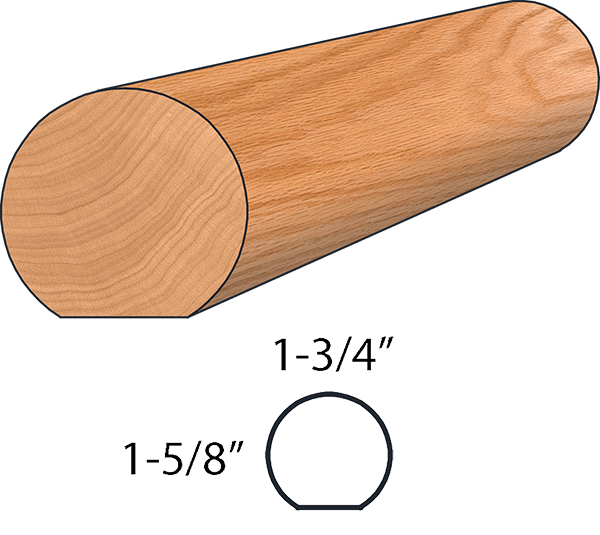

6040

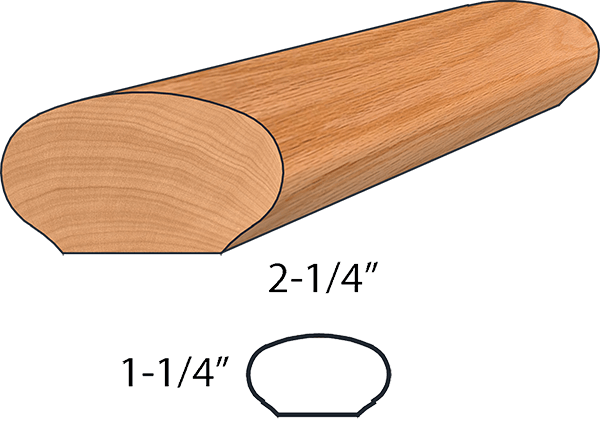

6042

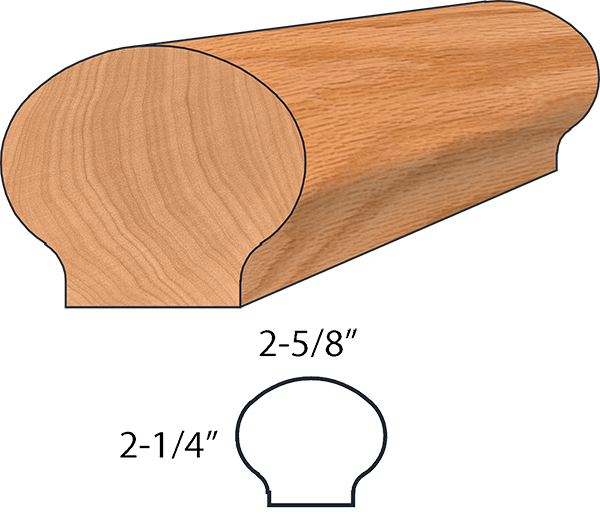

6715
SHOE RAILS

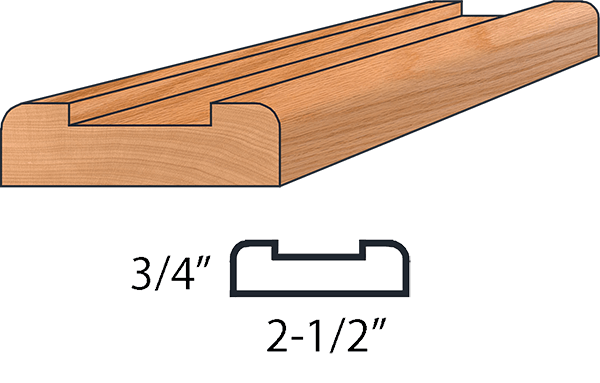

S6000
6715

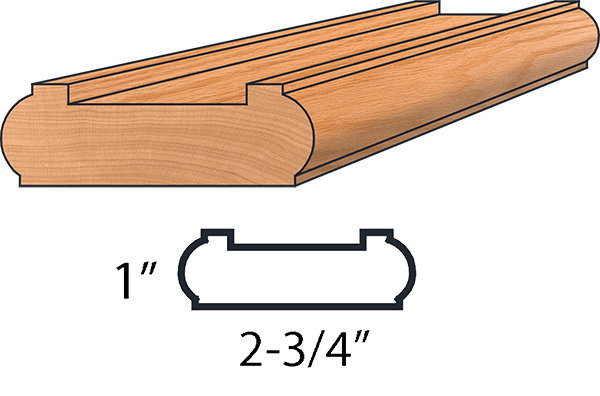

6006

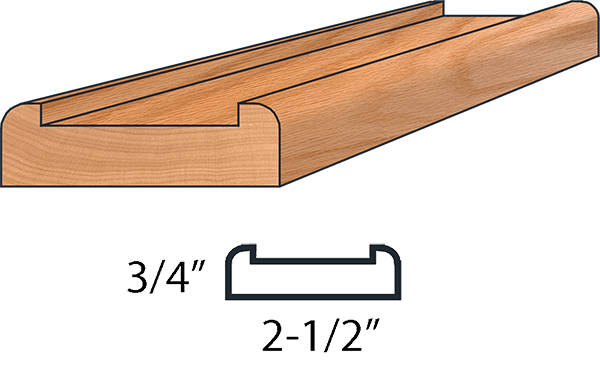

6001
6715
FILLET
6050
6060
6007
6050
6060
6007
